Retrofitting HVLS Fans in Existing Warehouses: How HVLS Fans Transform Fans in Warehouses

Hot and cold spots waste energy and slow teams down. Stale air, humidity, and uneven temperatures make a warehouse feel sluggish. A properly sized Ventilador HVLS retrofit evens out temperatures, boosts comfort, and trims bills—without rebuilding your teto or ductwork.

Retrofitting HVLS fans works because these large, low speed systems move large volumes of air to destratify warm air, improve air circulation, and support your existing HVAC with measurable energy savings in big, tall spaces. Done right, installing an HVLS fan is fast, safe, and cost-effective.

What is an HVLS fan and why do fans in warehouses matter?

UM Ventilador HVLS (High-Volume, Baixa velocidade fan) is a very large ventilador industrial that rotates slowly to move a large amount of air gently across a grande espaço. Typical diameters range from 12 ft to 24 pés. Because these fans move grandes volumes de ar with minimal power, Ajuda dos fãs do HVLS stabilize temperatures and cut drafts.

Em um armazém, tall racks trap heat near the ceiling, while workers feel cooler at floor level. The result is wasted heating and poor fluxo de ar. Os ventiladores HVLS são projetados to destratify ar quente e melhorar o ar mixing so conditions stay comfortable and safe. That’s why well-planned fans in warehouses deliver fast wins for comfort and bottom-line performance.

“Destratification from HVLS units can save up to ~25% on winter heating and up to ~30% on summer cooling when paired with smart setpoints.”

Choosing the right HVLS fan for your warehouse (how do you choose the right model?)

Para choose the right HVLS fan, start with tamanho do ventilador, mounting height, and clearances. Ceiling height, obstructions, and aisle width drive the sweep diameter you can safely use. For many bays, HVLS fans come in 14–24 ft sizes, and fans are available with hub-to-floor safety systems and smart controls.

Beyond diameter, think about usage and ventilação goals. If you run conditioned air, the existing HVAC system benefits from destratification. If you don’t, Os ventiladores HVLS fornecem um airflow solution that makes ambient conditions far more tolerable. When selecionar um ventilador, um fan specialist models throw distance and colocação de ventiladores to hit your targets for circulação de ar and reach in instalações industriais.

Sugestão: We manufacture and commission HVLS systems daily; our engineers map the quantidade de ar needed per bay and propose fans for warehouse applications that meet code, safety, and ROI.

How do HVLS fans in warehouses improve airflow and ventilation?

Think of a gentle, room-sized “river” of fluxo de ar. O pás do ventilador push ar em baixa velocity down, then it spreads outward, washing aisles before rising along racks to be pulled back through the teto zone. Os fãs trabalham with natural convection and sistemas de ventilação para melhorar a qualidade do ar and cut stagnant zones.

Porque Os ventiladores HVLS funcionam continuously, they balance hot and cold surfaces and reduce moisture. This stabilizes umidade spikes around docks and doors. In short, HVLS fans can significantly enhance perceived cooling via evaporation in summer and reduce consumo de energia in winter by destratifying.

Can HVLS ceiling fans for warehouse cut energy costs?

Yes. In summer, pairing HVLS ceiling fans for warehouse with setpoint adjustments lets you raise the thermostat while maintaining comfort—delivering real economia de energia e inferior custos de energia. In winter, destratification limits heat pooling at the roof so the burner runs less.

• Evidence: An ASHRAE-published hangar study recorded 29% lower gas use from destratification with a single Ventilador HVLS.
• Manufacturer and chapter guidance: Até ~25% economia de custos sobre heating and ~30% on cooling are achievable with proper control strategies.

Quando você use HVLS fans alongside the existing HVAC, the systems share the load—improving comfort while trimming run-time. Os fãs também apoiar refrigeração e ventilação in non-conditioned buildings where air feels stagnant.

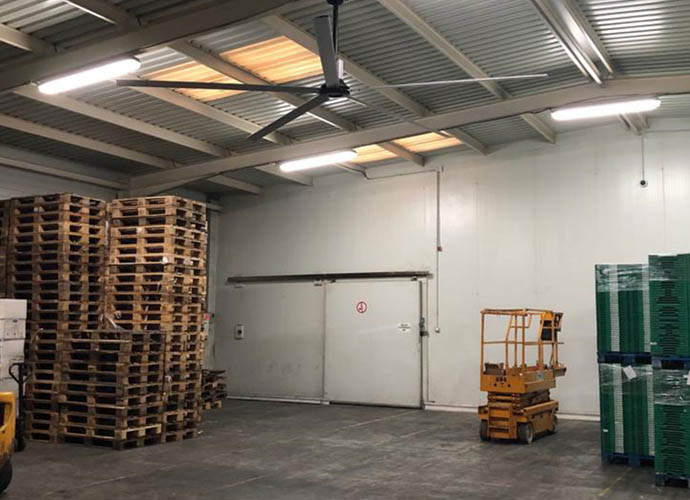

HVLS ceiling fans for warehouse

Retrofit checklist: fan placement, mounting, and HVLS fan installation

Goal: Install HVLS safely in an existing HVAC environment without disrupting operations. A typical Instalação do ventilador HVLS follows this flow:

1. Survey the warehouse space
   Measure clearances, locate sprinklers, lights, cranes, and walkways. Confirm the structure where fans are installed (purlins, I-beams). Engage EOR when required.

2. Engineering & fan placement
   We map throw patterns, aisle directions, and racking heights to ensure os fãs se movem air along work zones. Proper colocação de ventiladores avoids shadowing and meets local codes.

3. Power & controls
   Integrate with building management controls for seasonal profiles. You can run the fans on temperature or schedule, and interlock with smoke detection when required.

4. Commissioning
   Verify rotation, balance, speed curves, and destratification effects. Train warehouse managers on seasonal setpoints and maintenance.


Safety note: Os ventiladores operam near the ceiling and should maintain sprinkler clearances per your AHJ. Always follow the manufacturer’s structural and electrical guidelines.

Sweating slab syndrome: can HVLS warehouse fans really help?

Sweating slab syndrome happens when warm, moist air meets a cool concrete floor and condenses—turning aisles slick. An HVLS retrofit improves fluxo de ar and mixes temperatures, reducing dew-point risks across bays and docks. HVLS fans can help lower slip hazards and improve uptime by keeping floors dry.

We’ve seen busy docks stabilize after adding one HVLS fan for your space per bay: fewer wet-floor flags and smoother forklift traffic. This keeps teams comfortable and safe and protects inventory.

Integrating with the HVAC system you already have

Retrofitting doesn’t mean starting over. Pair the fan’s destratification with the existing hvac system:

• inverno: Reduce envelope losses by eliminating thermal layers; supply registers can back off while the fan fans effectively mix ar quente uniformly.
• verão: Raise setpoints 1–3°C and hold comfort with air speed. This is how Os ventiladores HVLS fornecem measurable savings with minimal changes to ducts or unit heaters.

We typically instalar ventiladores hvls on dedicated VFD controllers or tie into BACnet to automate schedules and seasonal modes for smooth aquecimento e resfriamento transitions.

Sizing guide: fan size, speed, and coverage for large industrial spaces

Selecting a fan is about diameter, mounting height, and obstacles. Here’s a quick armazém coverage view:

Fans can move vast “air rivers”—volumes de ar em baixa rotation. Because the disk is huge, fans reduce hot/cold spots without drafts. Os fãs fornecem gentle, even fluxo de ar at floor level, which lifts produtividade in task zones.

Rule of thumb: allow clear sweep under trusses and lights, and keep a safety envelope around sprinklers. When in doubt, call a fan specialist.

Controls, safety, and maintenance: keep it comfortable and safe

Moderno Os ventiladores HVLS requerem little upkeep: periodic torque checks, gearbox or direct-drive inspections, and firmware updates for controls. Estão disponíveis ventiladores with auto-reverse for seasonal modes and networked dashboards for alerts.

On controls, we often install HVLS fans with setpoint strategies: raise summer AC a couple degrees and let the fan mover grandes volumes de ar; in winter, maintain a low, continuous destratification speed. This adds comfort and energy stability across shifts while protecting racks and mezzanines.

keep it comfortable and safe

Case study: a distribution center retrofit and ROI

At a 30,000 m² centro de distribuição, management struggled with hot mezzanines and chilly docks. After a three-day retrofit of four Ventiladores de armazém HVLS, temperature spread dropped from 6°C to ~1.5°C. The team raised cooling setpoints by 2°C and trimmed burner cycles in winter.

• Result: Lower blower run-time and documented bill reductions in both seasons, consistent with industry reports of 20–30% savings potential when strategies are applied.

Do Vindus fans fit retrofits, and what about brands?

Fãs de Vindus are a well-known retrofit option—broad size range, efficient drives, and integration support for BMS. Published guidance highlights destratification benefits and economia de energia when paired with setpoint control and schedules. Other brands offer similar capabilities; the key is engineering, placement, and controls.

As a Ventilador HVLS manufacturing partner, we recommend performance-based specs (CFM/W, coverage, controls) and site drawings before purchase to ensure your warehouse facility gets the outcome you expect.

VINDUS M650 Series HVLS Fans

Quick buyer’s table: retrofit signals and actions

Perguntas frequentes

Will installing an HVLS fan disrupt operations?
Downtime is minimal. With lift access and pre-fab mounts, we can instalar ventiladores hvls between shifts. Most jobs complete quickly after structural checks and power prep.

Do HVLS fans for your facility replace air-conditioning?
No. They complement Climatização. Air speed boosts comfort so you can adjust setpoints. In non-conditioned armazém buildings, they make heat bearable by improving circulação de ar and perceived cooling.

Are HVLS fans for warehouse applications noisy?
They’re quiet. The large disk at baixa velocidade creates smooth fluxo de ar with minimal turbulence or hiss—ideal for pick lines and QC stations.

How do I choose the right HVLS fan for your space?
Consider height, obstructions, aisle widths, and target zones. Work with a fan specialist to model coverage and confirm structure. That’s choosing the right hvls fan with data, not guesswork.

What about safety under sprinklers and cranes?
Follow clearances and local codes. Mounts, guy wires, and shutdown interlocks protect systems when required. When fans are installed per spec, they operate comfortable and safe for people and equipment.

Putting it all together (editor’s guidance and practical notes)

• If you already have air-conditioning, existing hvac equipment runs less because destratification reduces runtime.
• If you don’t, fans for warehouse comfort still deliver value through stable fluxo de ar and evaporative relief.
• “Refresh fans” (as some teams nickname them) work best when you plan colocação de ventiladores for aisles and docks, then automate speeds by season to melhorar o ar mixing throughout the day.

Implementation mini-plan (use this to start fast)

1. Walkthrough – Map hot/cold spots, door cycles, and shifts across the armazém.

2. Engenharia – Calculate throw per Ventilador HVLS and obstructions; create a layout with callouts for near the ceiling mounts.

3. Controlos – Create a seasonal schedule (summer setpoint raise; winter destrat).

4. Commissioning – Validate mixing and comfort; document before/after.

5. Training – Hand off SOPs so warehouse managers can tune and run the fans with confidence.


Terminology and phrases you’ll hear (so specs make sense)

• Os ventiladores HVLS funcionam by moving a large amount of air gently with a huge disk.
• “Os fãs vêm with direct-drive motors or gearboxes; both can be efficient.”
• “Fans perform best when they can breathe—keep clearances open.”
• “Fans for better destratification run continuously in winter.”
• “Fans effectively complement unit heaters and RTUs.”
• “Fans and air speed together drive comfort; it’s not only temperature.”

Final notes on selection and ownership

A well-planned retrofit reduces custos de energia, stabilizes conditions, and supports safety—without complex duct changes. Fãs de Vindus and other premium options integrate with controls easily, and fans are available in multiple diameters and finishes to match your armazém needs. The best path is a consultative design with a manufacturing partner that builds, installs, and supports your system end-to-end.

Bullet-point summary (what to remember)

• Ventilador HVLS retrofits move large air masses gently to destratify and stabilize conditions.
• Apropriado colocação de ventiladores and controls deliver seasonal savings and better comfort.
• Pairing with Climatização setpoint strategies yields measurable reductions in consumo de energia.
• Use fans to combat sweating slab syndrome, especially near docks.
• Size by height and obstructions; diameters up to 24 pés cover big bays.
• Start with a walkthrough, layout, controls plan, and safe Instalação do ventilador HVLS.
• Well-executed projects are comfortable and safe, efficient, and scalable across sites.
