FanBrain™– Next-Generation HVLS Control System

FanBrain™– Next-Generation HVLS Control System

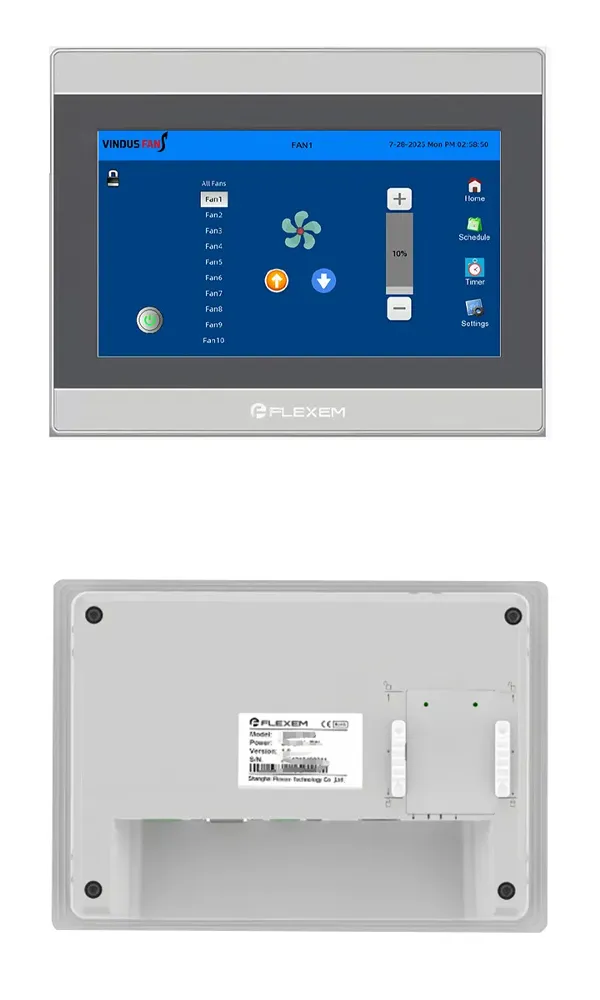

Developed by Vindus, FanBrain is a state-of-the-art intelligent control system designed for HVLS fans, delivering automation, convenience, and energy efficiency.

立即咨询

产品详情特征控制器立即咨询

产品详情

Display

Resolution

Brightness

Backlight

LCD Lifetime

Touch Panel

CPU

Storage

RTC

Ethernet

SD Card

Bluetooth

USB Port

Program Download Method

Serial Port

LCD Viewing Angles (T/B/L/R)

Rated Power

Rated Voltage

Power Protection

Power Interruption

CE&RoHS

Operating Temperature

Storage Temperature

UV Resistance

Environmental Humidity

Vibration Endurance

冷却方式

Protection Level

Enclosure Material

Cutout Dimensions

Dimensions

重量

10.1” 16:9 TFT LCD

1024×600

400 cd/m²

LED

50000 hours

4-wire industrial resistive touch panel

Cortex-A7(main frequency is 1GHz,dual-core)

256MB DDR3+4GB eMMC

Built-in

1* 10M/100M self-adaptive RJ45 port

1*Type-C 2.0 port;1*USB Type-A 2.0port

USB Slave/U disk/Ethernet

COM1:RS232/RS485/RS422
COM2: RS485
COM3:RS232

85°/85°/85°/85°

<10W

DC24V,operational range:DC 9V~28V

Lightning surge protection

<5ms

EN61000-6-2:2005 and EN61000-6-4:2007 standards certified;
RoHS certified;lightning surge±1kV;
group pulse±2kV;electrostatic contact 4kV,air discharge
8kV

0~50℃

‘- 20~60 ℃

Operating in high UV environment is prohibited(e.g.,in
direct sunlight)

10%~90% RH (non-condensing)

10~25Hz (X/Y/Z direction, 2G/30 minutes)

Natural air cooling

Front:IP65 (with flush panel cabinet
installation), Rear:IP20

Engineering plastic

260mm×202mm

273mm×213mm×36mm

About 920 g

特征

1. Centralized Control

Control up to 10 fans from a single 10-inch HMI touchscreen.
Manage ON/OFF, forward/reverse rotation, and speed adjustments effortlessly.
Schedule fans to start or stop automatically based on preset timelines, rotation directions, and speeds.
Set countdown timers for automatic shutdown.

2. Intelligent Temperature-Based Operation

Integrates with temperature sensors to monitor ambient conditions.
Fans turn ON when the temperature exceeds the setpoint and OFF when it drops below. Different temperature levels correspond to different fan speeds.
With two sensors installed (roof & floor) and thermal recovery enabled, the fan automatically reverses when the temperature difference reaches the preset value.

3. Flexible Connectivity

Supports Modbus-RTUcommunication protocol.
Offers both wired (RJ485) and wireless connectivity—wireless option eliminates wiring complexity.
Supports integration with BMS (Building Management System).

4. Group Control

Organize fans into groups by area or workshop for independent zone control.

5. Multi-Language Support

Supports English and Chinese with one-click language switching.
