Industrial Shop Fan vs HVLS Ceiling Fan: The Industrial Air Circulator Tornado Your Facility Needs

Hot, stagnant air kills productivity. Workers sweat, equipment overheats, and energy bills climb. The fix isn’t “more small fans”—it’s choosing the right industrial solution and installing it correctly.

An industrial shop fan moves high CFM air in a focused zone, while an HVLS ceiling fan circulates big air slowly across large spaces. Pick shop fans for targeted cooling or spot drying; choose HVLS for effective air circulation, energy efficiency, and comfort in warehouses, gyms, and commercial spaces.

%industrial shop fan hvls ceiling fan airflow

What is an Industrial Shop Fan and how does it differ from an HVLS ceiling fan?

一个 industrial shop fan is a portable or fixed, heavy-duty air mover designed for concentrated 空气流动 in a defined workspace 或者 workshop. It blasts high CFM air at 高速度 to cool people, dry floors, or clear fumes. An HVLS 吊扇 (high-volume, low-speed) spans up to 24 feet and rotates slowly to 空气流通 across massive areas like a 仓库, 工厂, or gym with low noise and minimal 能源消耗. Both are industrial, but the use case, 安装, and effects on noise levels differ.

industrial shop fan

We manufacture both. As an HVLS fans manufacturing plant, we’ve watched facilities waste power on small oscillating units that never touch the hot spots. Once they switch to industrial HVLS systems, they improve air quality, comfort, and 生产率—and yes, they spend less on AC  .

**Key differences in one glance:  **

Why airflow and CFM matter: calculating powerful air movement for your space

CFM (cubic feet per minute) tells you how much air a fan moves. A 24 inch industrial floor fan can hit 7,000–10,000 CFM, but a 20-ft HVLS can exceed 300,000 CFM. When you compare, match CFM to 空间 volume and heat load. Powerful airflow is not about wind chill alone—it’s about mixing stratified air to 改善空气 temperature uniformity.

• Use this quick formula: Space Volume (ft³) ÷ Desired Air Changes per Minute = Target CFM.
• For a hot industrial shop, plan 4–8 air changes/hour; for gyms or 商业空间, 2–4 is common.

Our fans are pre-wired to speed commissioning. 风扇设计 for harsh environments deliver consistent CFM even with dust or humidity.

来源: ASHRAE 55 Thermal Comfort Standard, OSHA Ventilation Guidelines  .

Ceiling fan features vs drum fan & pedestal fan: which fan types fit your space?

不同 风扇类型 solve different problems:

• Drum fan (a rolling drum on wheels): rapid drying after washdowns or spill cleanup.
• 落地扇: adjustable height, good for assembly lines where people move.
• Oscillating wall mount fan: fixed 安装, but can oscillate to sweep a wider arc.
• Motor ceiling fan (industrial-grade): smaller than HVLS but fixed overhead when floor space is tight.

Meanwhile, an HVLS unit covers the entire indoor area with one device. Consider 吊扇特点 like variable frequency drives, smart sensors, and integration with lighting or HVAC controls.

We help you map 安装 points, structural loads, and electrical runs so you can order industrial systems with confidence.

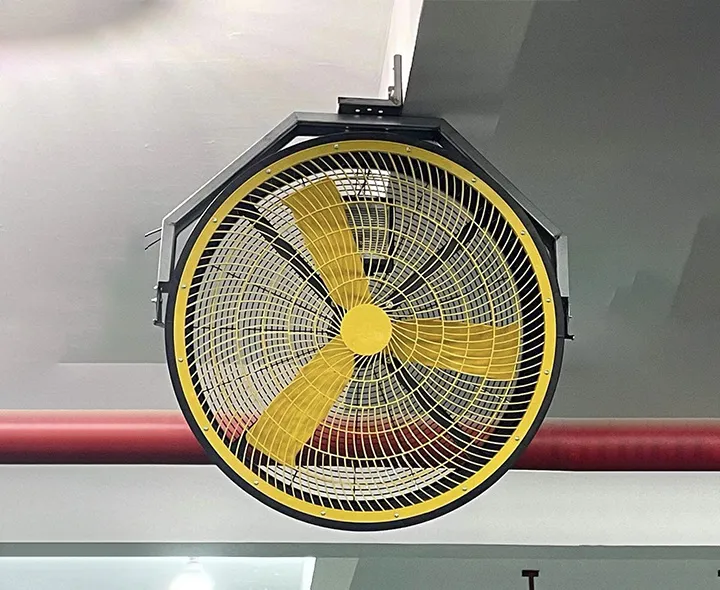

Oscillating wall mount fan

Installation & mounting tips: from motor ceiling fan to oscillating wall mount fan

恰当的 安装 is safety and performance. For HVLS:

1. Verify beam strength and use UL-rated hardware (yes, UL 和 ul safety listed matter).
2. Confirm clearances for sprinklers and skylights.
3. Balance blades to avoid vibration and meet OSHA guidelines for 工作环境 safety.

For smaller gear like a fan with remote control 或 3 speed unit:

• Check voltage, phase, and pre-wired plugs for fast hookup.
• Decide on floor, wall, or ceiling 安装. Adjustable tilt helps aim air right where you need it.
• Use guards on 刀刃 edges in high-traffic aisles.

来源: UL Standards, NFPA 13 Sprinkler Clearance  .

Energy efficiency, noise levels, and UL safety listed standards you should not ignore

Energy is money. An HVLS fan’s 能源效率 comes from moving 高容量 air at 低速. That’s why industrial hvls systems often pay for themselves by cutting 能源消耗 on HVAC.

• Noise levels: A well-built HVLS is practically an oscillating fan you can’t hear. For 住宅 areas adjacent to plants, low noise matters.
• Compliance: Look for UL safety listed and CE marks. Reliability beats cheap imports that fail in six months.
• We design for 可靠性 and long life—bearings, drives, and coatings rated for real industrial duty.

来源: U.S. DOE Fan System Efficiency, OSHA Noise  .

Remote control, 3 speed options, and adjustable tilt: do you really need them?

Controls save labor and time. A wall switch is fine, but plants love central dashboards or mobile apps.

• Fan with remote control: great in a 车库 or mezzanine where the switch is far.
• 3 speed toggles are simple, but VFDs give finer control and integrate with BMS.
• Adjustable heads or adjustable tilt brackets let you redirect air as lines move. That’s flexibility.

Ask yourself: will operators actually use advanced modes? If not, keep it simple—and 粉丝提供 value without complexity.

Outdoor, gym, warehouse, and workshop use cases: real projects from our factory

户外的 loading bays collect diesel fumes. One oscillation-capable unit on each side can flush them fast. In a 健身房, comfort equals membership retention; an HVLS over the cardio zone keeps sweat off the floor. In a 仓库, we used four HVLS fans to cut AC run-time by 30% and boost 生产率  .

In a metal workshop, sparks fly—so we spec spark-resistant motors and guards. In a food 工厂, washdown-rated housings meet hygiene rules. Different sectors, one goal: effective air circulation.

• 仓库 example: 250,000 ft², 6 fans, each 18–24 ft, CFM data logged to prove ROI.
• 健身房 example: 20,000 ft², comfort improved, member complaints dropped by 70%.

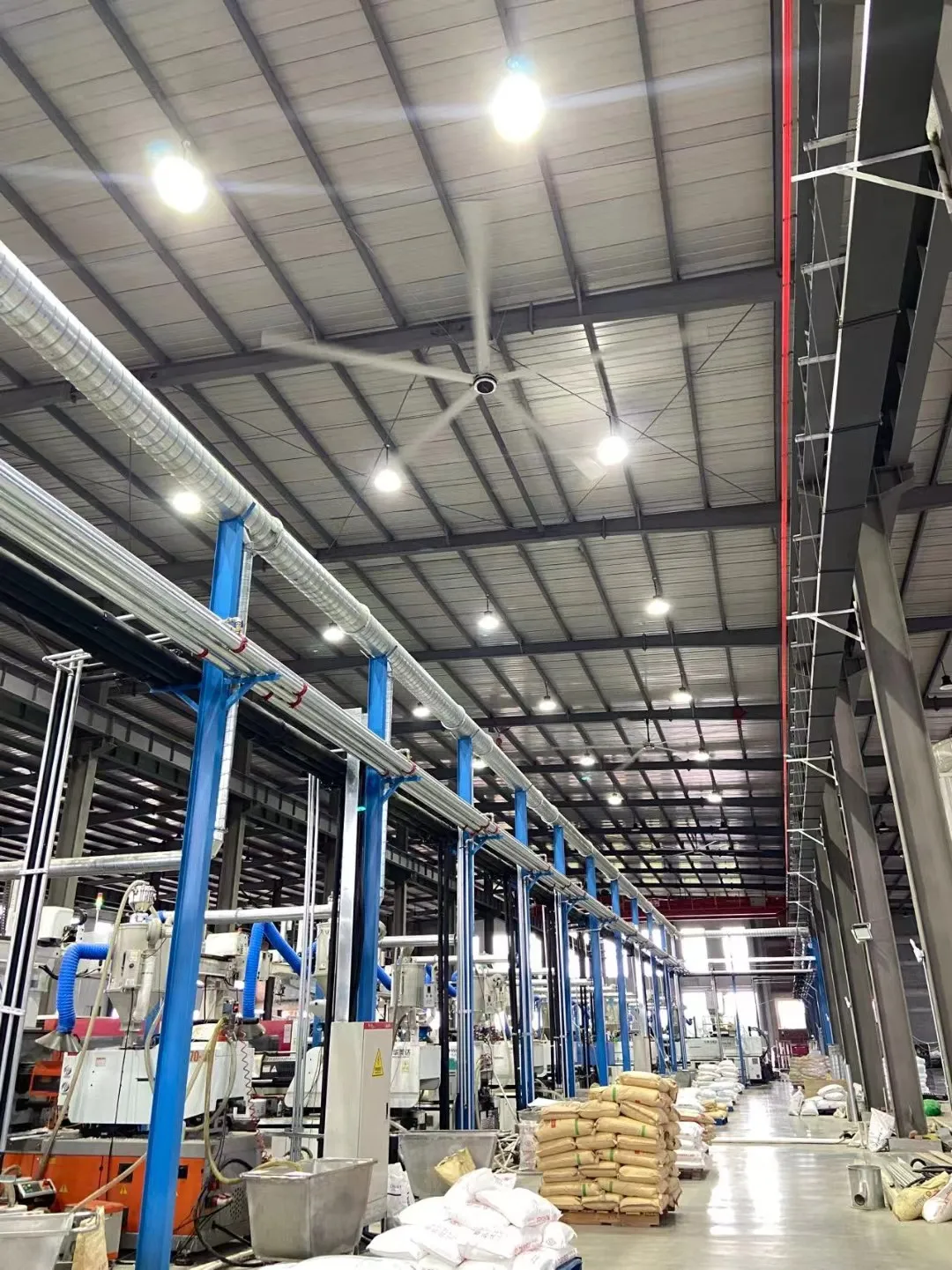

工厂中的 HVLS 风扇

OSHA, UL, and AC power: compliance and reliability in industrial-grade fans

Regulators care about safe wiring and guarding. Our products are industrial grade 和 UL verified. We follow OSHA for spacing, guarding, and lockout/tagout.

• Power: standard AC supply, single or three-phase.
• Motors: TEFC or EC motors for efficiency and durability.
• Documentation: from spec sheets to pre-wired harnesses, you get what maintenance teams want.

风扇设计 为了 fans and industrial environments need proper labels, manuals, and training.

How HVLS fans deliver big air with high-volume, low-speed technology

HVLS 代表 高容量, 低速. Massive blades move slowly to 空气流通 gently but broadly. This “big air” effect destratifies heat layers, cuts condensation, and reduces HVAC loads.

We position HVLS as the backbone; then drum fan, 落地扇, or an oscillating wall mount fan handles corners or temporary tasks. Together, fans deliver a balanced climate.

当你 order industrial HVLS, ask for actual 立方英尺/分钟 curves, not just marketing numbers.

Buying checklist and FAQs: order industrial fans designed for commercial spaces

Before you sign:

• Define the problem: heat, fumes, moisture, or all three?
• 措施 空间 volume and process heat.
• 决定 安装 style and 安装 window.
• Confirm certifications (UL, CE), warranties, and spare parts availability.
• Plan for controls: networked, fan with remote control, timers, or sensors?

常见问题解答

**How do I size a fan for my warehouse?  **
Calculate volume (L×W×H) and divide by desired air changes. Then match that CFM with either one HVLS or multiple smaller units.

**Can HVLS work with AC systems?  **
Yes. HVLS lowers the perceived temperature and evens out thermal layers, so HVAC runs less. That’s direct 能源效率  .

**Are these fans safe around sprinklers and lights?  **
Absolutely—if installed to code. Maintain NFPA clearances, use UL safety listed gear, and verify 安装 规格。

**What if my ceilings are low?  **
Use smaller diameter HVLS or a motor ceiling fan. Otherwise, combine a 落地扇 和 oscillating fan to cover long aisles.

**Do I need variable speed or is 3 speed enough?  **
If your heat load changes often, variable is worth it. Otherwise, 3 speed may be fine.

**Can I put these outside?  **
Yes, but select 户外的-rated coatings and IP-rated motors. Salt air? Ask for marine protection.

关键要点

• Match fan type to the job: spot cooling (shop fan) vs whole-building mixing (HVLS).
• Check CFM, not just horsepower; 立方英尺/分钟 equals real 空气流动  .
• 计划 安装, 安装, and compliance (UL, OSHA).
• 寻找 节能, heavy-duty designs to cut 能源消耗 and downtime.
• Use a blend: HVLS for the base layer, smaller units for corners and processes.
• Always verify specs, warranties, and support before you order industrial equipment.
