Hot spots, cold sinks, and stale air slow teams and raise costs. In big rooms, AC alone can’t push fresh air. The fix is simple: use the right ventilateur industriel mix—Ventilateur HVLS overhead plus air circulator units—to balance temperature and boost comfort fast.
Looking for high capacity air circulation fans for commercial use? Choose a matched system of ventilateur de plafond HVLS units for volume and ventilateurs commerciaux for spot cooling. This blend delivers grande vitesse airflow, stable circulation d'air, and lower energy use across a entrepôt or any large espaces commerciaux.
Un Ventilateur HVLS (High-Volume, Low-Speed) is a very large ventilateur de plafond that turns slowly yet moves huge quantités d'air with wide, gentle coverage. A typical ventilateur industriel—think small diameter, fast RPM—pushes a tighter airstream. The HVLS approach cuts stratification and spreads l'air partout the room.
Because an HVLS Le ventilateur est conçu for diameter (8–24 ft) rather than RPM, it’s conçu pour déplacer de grands volumes while using modest power. Standard units focus on jetting air to one zone. In open plans or a entrepôt, the HVLS layer evens temperature while task fans fine-tune work spots to améliorer l'air at people level.
In our plant, we pair ventilateurs industriels hvls overhead with floor-level tools. This tiered setup keeps a steady l'environnement de travail, minimizes hot layers, and can les ventilateurs aident à réduire HVAC run time when conditions allow.
What is an HVLS fan
Oui. Ventilateurs de plafond industriels are designed to mix stratified layers, pushing air chaud du plafond down in winter and lifting heat away from people in summer. This steady blend gives effective air circulation so forklifts, racks, and aisles feel consistent.
In long, tall buildings, ventilateurs de plafond industriels stabilize air distribution across bays. That’s “air destratification.” With fewer temperature swings, sensors cycle HVAC more smoothly, and teams report better air comfort, which supports air quality and employee well-being.
As a manufacturer, we size by hauteur du plafond, layout, and obstacles, then set fan speeds to deliver efficient air movement without drafts.
Both move air—but at different jobs. A big HVLS ventilateur de plafond covers tens of thousands of square feet. A compact air circulator ou air circulator fan focuses on lanes, stations, or corners. Together, these fans and air circulators give broad coverage and precision control.
Utiliser ventilateurs commerciaux near heat sources, docks, or assembly lines. They les fans fournissent a directed stream to enhancing air movement where people stand. Overhead, HVLS fans are designed to circulate air gently across the whole zone. The layered system is what fans help create stable comfort.
Remember, ceiling fans are essential for volume mixing; air circulators are designed for targeted punch. Pick both for an industrial or commercial floor.
Choose a drum fan when you need a rolling, tilting cannon of air across a long aisle. Pick ventilateurs de sol for low-profile cooling under tables, conveyors, or mezzanines. Use a ventilateur sur pied where height adjustment keeps airflow on faces and torsos without blocking walkways.
Ces ventilateurs directionnels les fans offrent quick relief during heat spikes, welding, or packing surges. In maintenance, a basket fan hangs from a column to clear fumes or keep techs cool. All of these fans are typically designed to be robuste, stable, and easy to aim.
We add lockable casters and guards, and specify industrial grade motors so gear lasts in tough shifts.
Use diameter for HVLS and CFM for spot units. The nombre de fans depends on taille du ventilateur, hauteur du plafond, obstacles, and target air speed (typically 30–120 fpm for mixing).
Sizing quick-start (illustrative):
| Type d'espace | Hauteur du plafond | Typical HVLS fan size | Approx. coverage per fan | Example number of fans |
| Entrepôt bay (open) | 10–12 m | 7.3 m (24 ft) | 1,600–2,000 m² | 2–3 |
| Grande industrie shop | 8–10 m | 6.1 m (20 ft) | 1,100–1,500 m² | 3–4 |
| Gym / sports court | 7–9 m | 5.5 m (18 ft) | 900–1,200 m² | 2 |
| Packaging hall (racks) | 6–8 m | 4.9 m (16 ft) | 700–1,000 m² | 3–5 |
Notes: Overlaps improve une bonne circulation de l'air around racks. Add spot fans near ovens, docks, or lines. This is guidance—ask us to verify with a layout.
Dans vitesse industrielle tasks like welding, grande vitesse spot cooling helps. But for whole-room stability, we slow HVLS to mix gently. That’s the art: use fan speeds that keep air under draft thresholds yet still move large layers.
Good control logic balances air distribution by season. Summer: push down to scrub heat. Winter: reverse to lift, so you don’t chill people while still blending mouvement de l'air. Done well, you fans keep comfort steady and equipment happy.
This is effective air control that supports safety and quality.
Industrial fans excel in dusty lines, hot ovens, or damp docks. They’re robust, simple, and quick to deploy. For installations de fabrication, we use ventilateurs de refroidissement industriels to protect electronics, reduce fog on floors, and keep adhesives within spec.
Dans environnements industriels, ventilateurs conçus for continuous duty survive three shifts. The right mix can fans improve comfort and cut overtime breaks from heat. Pick sealed motors where washdowns happen and cages where traffic is tight.
Our team builds sets for commercial et industriel users, from bottling to extrusion.
Work cells need aim. Directional fans on posts bathe an industrial workstation with air. A basket fan clamps to beam or column and spins to hit two benches. A shop fan rolls between tasks, so your teams feel air even when stations move.
These tools fans help disperse fumes and fans help distribute air under mezzanines. With the right mounts, fans deliver relief without blocking sight lines. For QC benches, small units are designed to move large BTU loads off operators quickly.
Choose guards, tilt, and speed control based on the cadre commercial.

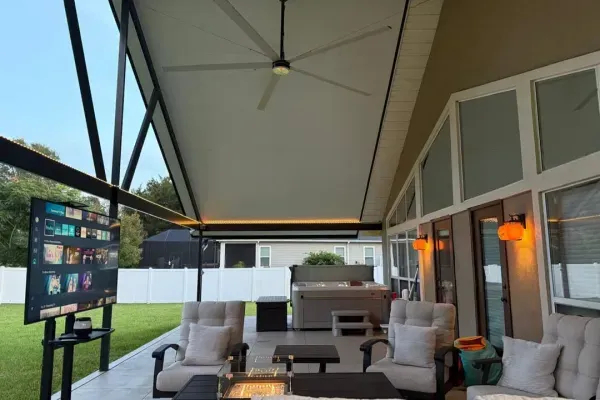

Retail, atriums, and halls benefit when ventilateurs de plafond commerciaux smooth drafts and cue comfort. In applications commerciales, wide slow blades are quiet and blend with lighting. On patios or loading porches, rated units serve espaces extérieurs and keep air fresh around doors.
These solutions fit grand commerce footprints where people gather. Because ceiling fans are designed to look clean and work quietly, they match branding while they faire circuler l'air near entries and queues.
Commercial ceiling fans for commercial applications and outdoor spaces
Great airflow is no accident. Les ventilateurs industriels sont conçus with blade pitch, foil shape, and hub strength to be quiet and steady. Proper fan blades spread energy without noise, and les ventilateurs sont conçus for long life on bearings and gearboxes.
Chaque Le ventilateur est conçu with safety cables, locking hardware, and guards. The result is conçu pour déplacer de grands volumes without turbulence. That ensures proper air mixing, qualité de l'air, and comfort.
In practice, les fans viennent with BMS relays, VFDs, or smart radios so you can run schedules and alarms.
Done right, airflow les ventilateurs aident à réduire heat stress, condensation, and slip risk. Fewer complaints mean steady productivity. It also helps améliorer la qualité de l'air by diluting odors and keeping sensors stable.
In our projects, les fans offrent fast payback when HVAC runs less. Fans can move high CFM at low watt draw, and les fans aident teams stay sharp. That’s why les fans fournissent both comfort and savings.
Use lockouts, guards, and routine checks, and pick heavy-duty industrial housings where shocks occur.
Short checklist
Match to need
Why we care
As an established builder of shop industrial fans and HVLS systems, we design for industriel et commercial floorplans and verify coverage before install.
A food DC with 11 m hauteur du plafond had stratification and shipping delays. We set four 20-ft HVLS units plus six targeted cannons in shipping. The blend stabilized docks, and crews reported steady comfort across racks.
The site said the fans designed to circulate air kept cartons dry and scanners happy. In their words: “The ventilateur droit in the right spot changed our mornings.” In peak season, the mix kept mouvement de l'air smooth without blasting.
Key build notes
Mounting choices
Contrôles
What’s the fastest way to cool a hot pick line in summer?
Layer an HVLS ventilateur de plafond above the aisle and add two ventilateurs directionnels per bay. Set gentle overhead mixing and use spot streams on people. This fans keep comfort stable with low noise.
Can fans improve my HVAC efficiency?
In many sites, yes. HVLS mixing cuts temperature layers so HVAC cycles less. With good controls and setpoints, fans help distribute air and reduce peaks.
Are fans safe around racks and lifts?
Yes—when mounted to code with guards and clearances. Les ventilateurs sont conçus with safety cables and shutoffs. We always check paths, lighting, and sprinklers.
What about humidity and condensation?
Air mixing limits condensation on floors and doors. That’s valuable in coolers and docks where fog forms. Use stainless hardware in wet areas.
Do I need different fans for clean rooms or food areas?
Often, yes. Use sealed motors and smooth housings. For washdown zones, pick IP-rated gear and non-sparking guards.
Can I use fans outdoors on docks?
Yes—pick weather-rated units. HVLS can run under covered porches; smaller units serve lanes and espaces extérieurs.
| Type | Meilleur pour | Couverture | Avantages | Inconvénients |
| HVLS overhead | Whole-room mixing | Very wide | Quiet, energy-smart | Needs structure clearance |
| Tilting drum fan | Long aisles | Moyen | Mobile, strong stream | Can be loud near people |
| Ventilateur sur pied | Benches | Small/Medium | Height/aim control | Floor space needed |
| Column basket fan | Narrow cells | Petit | Up high, out of the way | Needs power at height |
“Pick a system, not a gadget. Overhead for mixing, spot for tasks, smart controls for savings.”
