Industrial Floor Fan vs Industrial Ceiling Fan – Which High‑Velocity Solution Fits Your Facility?

Warehouses overheat, gyms get sticky, and usine workers lose focus when stale air refuses to move. Pick the wrong fan and you burn cash on power; pick the right one and you slice costs while everyone feels cool again.

Un industrial floor fan delivers high‑velocity air exactly where people sweat, whereas an plafond industriel unit mixes hot ceiling layers with cooler floor air for even flux d'air à travers des espaces plus grands. Choose floor models for spot‑cooling; mount ceiling fans when whole‑room mouvement de l'air and lower energy bills matter most.

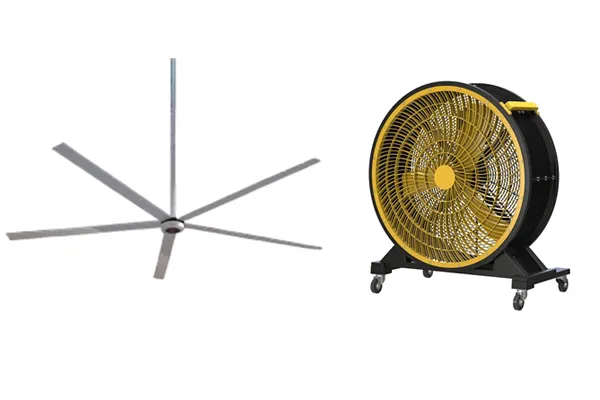

Industrial Floor Fan vs Industrial Ceiling Fan

Plan de l'article

• Key Technical Differences
  Installation position, airflow shape, CFM range, noise, and cost.
• When to Choose an Industrial Floor Fan
  Portable spot‑cooling, adjustable tilt, heavy‑duty design, example garage scenario.
• When Does an Industrial Ceiling Fan Win?
  Stratification control, large‑space coverage, quiet operation, warehouse & gym benefits.
•  CFM & ROI Calculator
  Simple sizing formula, sample table comparing floor vs ceiling units, payback insight.
• Safety Rules: OSHA Guards, Hazardous Zones, and Motor Protection
  Guard spacing, explosion‑proof motors, outdoor‑rated enclosures, interlocks.
• Installation & Maintenance: Floor vs Ceiling Fans
  Step‑by‑step setup for each type, service intervals, cost comparison.
• Case Study – Retrofitting a Gym & Service Garage
  Project overview, solution mix, before‑and‑after data, key takeaways.
• 60‑Second Decision Matrix
  Eight practical checkpoints (height, layout, budget, safety, etc.) to choose the right fan.
• Questions fréquemment posées
  Six common queries on sizing, noise, OSHA compliance, integration, outdoor use, HVAC.
• How We Manufacture & Support Your Fan Choice
  Factory credentials, product testing, warranty, global spares, internal case‑study links.
• Bullet‑Point Recap & CTA
  Summary of decisive factors and invitation to request a free airflow audit.

1. Key Technical Differences

Before we dive into numbers, understand the core contrasts:

Installation position – a floor model rests on rubber feet; a ceiling unit hangs from steel drop rods (mount fan style).

Air stream shape – floor designs act like a directional fan, firing a narrow jet that can oscillate if needed. Ceiling blades spread air in a wide column to circuler every corner.

Typical output – floor units supply 5 000–8 000 CFM in a tight beam; ceiling versions move 50 000 CFM +, gently blanketing aisles.

Noise levels – because their blades spin slower, ceiling products stay under 55 dB for quiet operation; floor units reach 70 dB but still meet OSHA acoustic limits.

Capital cost – on day one, a rugged floor model costs a few hundred dollars; an HVLS ceiling system costs more up front but often pays back in utility savings within two summers.

Conseil : Always measure the quantité d'air avec un anemometer at the height your team works, not at the fan grill. That reading shows true comfort, not brochure hype.

2. When to Choose an Industrial Floor Fan

UN floor‑standing ventilateur shines in jobs that demand direct airflow right now:

• Portable—roll it beside welding tables, then wheel it to the paint bay after break.
• Adjustable tilt—aim the head up to dry epoxy or down to cool cables.
• Industrial use—its heavy‑duty steel cage withstands accidental forklift taps.
• Variable speed (3 speed rocker) lets you dial breeze from gentle to gale without wasting amps.
• Comes with a 10‑ft cord so you’re not hunting outlets.

Real‑world scenario
A 3 800 ft² garage servicing trucks had fume pockets near floor level. Two 24 inch floor fans on low tr/min moved 7 200 CFM each, cutting CO concentration by 40 % while staying within the shop’s modest breaker capacity.

Because they’re movable, floor units also relieve “hot spots” in pallet‑pick zones where climatisation just can’t keep up.

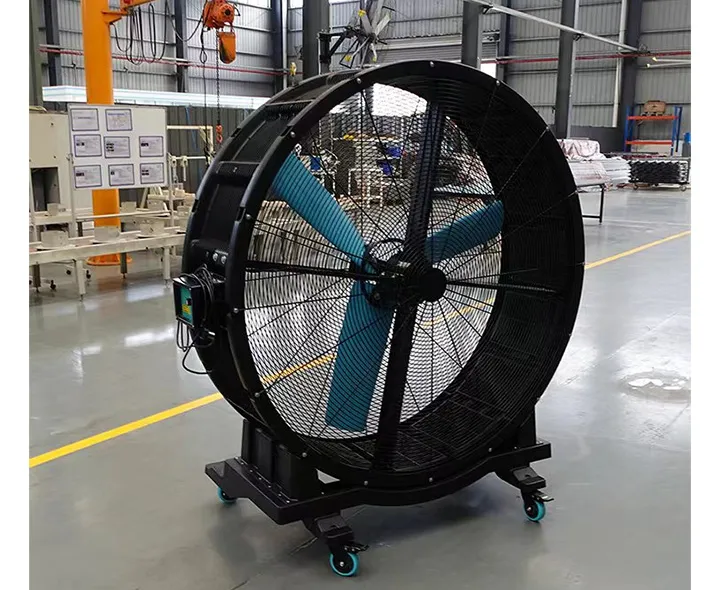

When to Choose an Industrial Floor Fan

3. When Does an Industrial Ceiling Fan Win?

If your roof sits higher than a basketball rim, heat stratifies. An overhead HVLS fan:

• Breaks the 10 °C temperature gap between rafters and floor, enhancing energy‑efficient HVAC cycles.
• Covers entrepôt aisles 60 ft wide with one hub, saving floor space for forklifts.
• Meets hazardous location rules by placing the moteur and electronics away from solvents below.
• Runs at lower tip speed, so conversations remain audible—vital for safety calls in sports halls and schools.

Notre VENTILATEURS HVLS D'ENTREPÔT  deliver a gentle, high performance column that employees say “feels like a natural breeze rather than a draft.”

4. CFM & ROI Calculator (First Table)

*Based on standardized specification sheets for our ventilateur industriel lineup. Adjust counts for échappement load or high humidity to stay at performances optimales.

To compare payback, plug the watt draw into our free ROI sheet—the ceiling option often recovers its premium within 18 months thanks to lower kWh.

 5.  Safety Rules: OSHA Guards, Hazardous Zones, and Motor Protection

Fan blades spinning at high‑speed can be an asset or a danger—it depends on compliance:

• Guard spacing must stop a ½‑inch probe; choose welded wire guards for dusty sawmills and ring‑frame guards for clean gyms.
• In spray‑paint booths or grain bins, flammable vapors raise the risk level. Select hazardous‑location motors (Class II, Div 2) and add spark‑resistant aluminum blades.
• Drip‑proof housings protect windings in moist ambient air; on rooftop docks you’ll want outdoor rated IP55 enclosures plus GFCI plugs on the cord.

Quick check: If the site handles solvents and requires 24/7 airflow, install an interlock so the fan trips when the exhaust system fails—smart safety and smart insurance.

6  .Installation & Maintenance: Floor vs Ceiling Fans

 6.1  Floor Fan Setup

1. Roll into position and lock the casters.
2. Verify the ft cord reaches a dedicated 15 A outlet.
3. Adjust the vitesse variable knob and tilt angle; confirm oscillation clears obstacles.
4. Every quarter, blow dust from the rotor and test the three‑step switch.

6.2  Ceiling Fan Setup

1. Confirm truss load charts; use seismic cables in quake zones.
2. Torque drop‑rod bolts to spec, align the hub to avoid wobble.
3. Wire to a VFD for smooth 150–320 tr/min ramps—big help for quiet operation.
4. Grease hub bearings yearly; check blade pitch with a digital inclinometer for performances optimales.

Maintenance math: A ceiling unit sees half the service visits of comparable pedestals, saving crews roughly $600 per fan across five years.

Installation & Maintenance

7 . Case Study – Retrofitting a Gym & Service Garage

The client: a regional sports center with a 12 m‑high basketball court attached to a 370 m² truck garage. Summer temps peaked at 33 °C, equipment rusted, and the HVAC ran nonstop.

Solution

• 1 × 18 ft Ventilateur de plafond HVLS over the court
• 2 × 24 inch high velocity floor fans beside service bays
• Simple air circulator algorithm: HVLS at 50 % speed, floor units auto‑kick when CO ≥ 25 ppm

Insights
The ceiling fan blended stratified air; the floor units delivered direct airflow to mechanics during peak heat bursts. Payback arrived in 15 months purely from reduced chiller runtime.

 8.  60‑Second Decision Matrix

Run through these eight checkpoints and circle the first column that fits—your answer tells you which fan wins:

Hauteur du plafond

• < 5 m ▶ Floor fan
•  8 m ▶ Ventilateur de plafond

Layout flexibility

• Workstations move weekly ▶ Portable floor unit
• Fixed racking for years ▶ HVLS ceiling install

Cooling needs

• Intense welding heat at one point ▶ high velocity oscillating floor model
• Even comfort for offices above the shop ▶ Overhead destratification

Noise tolerance

• Music‑blaring gym ▶ 65‑dB floor fan okay
• Quiet assembly line ▶ 55‑dB ceiling breeze

Safety zone

• Flammable vapors present ▶ Explosion‑proof ceiling motor + interlocked ventilateurs d'extraction
• General purpose ▶ Standard TEAO motors fine

Budget horizon

• ≤ $1 000 per bay, short lease ▶ industrial pedestal fan fast payback
• 5‑year ownership goal ▶ HVLS recoups via energy‑efficient économies

Surface au sol

• Aisles crowded with pallets ▶ Clear roof path, choose ceiling
• Plenty of open concrete ▶ Floor units roll wherever

Maintenance staff

• Limited crew ▶ Ceiling gear; half the service visits
• On‑site electricians daily ▶ Floor gear easy DIY

Finish with more ticks on one side? That’s your best fit. Still unsure? Our engineers will size fans free of charge—no obligation.

 9 .Frequently Asked Questions

Do I need both a ceiling fan and floor units for a 50 000 ft² plant?
Often yes. A big HVLS mixes the air column, and two 24‑inch floor blowers deliver direct airflow at conveyor chokepoints for the most comfortable cooling experience.

Is a Lasko ‘fan 20’ sufficient for industrial use?
Consumer lines like Lasko excel in garages, but production floors demand rugged steel cages, sealed bearings, and higher CFM. Step up to our 20‑inch ventilateur à grande vitesse rated 5 500 CFM for powerful performance beyond hobby work.

Can floor models meet OSHA when they oscillate?
Yes. Our adjustable heads lock securely; the guard spacing meets §1910.212. Always keep 7 ft clearance when you oscillate toward personnel pathways.

How do I integrate fans with building ventilation?
Tie vitesse variable drives to a CO sensor; when exhaust levels spike, the controller ramps fans to boost ventilation and signal make‑up air units—smart, safe, and fully programmable.

What if my facility is partially outdoor?
Select an outdoor rated IP55 floor fan; stainless screws and UV‑stable grills shrug off rain. Ceiling units get epoxy‑powder blades for durable service on loading docks.

Will the fans interfere with air‑conditioning ducts?
No. Properly sized HVLS blades spin just 60–80 tr/min—slow enough to cooperate with diffusers and actually improve duct throw by reducing thermal layering.

10 . How We Manufacture & Support Your Fan Choice

As a hvls fans manufacturing plant, we control every step—from rotor die‑casting to final balance on laser rigs. Each line leaves our ISO‑9001 shop with:

• Stainless steel hardware and epoxy finish for indoor or outdoor duty
• Dynamic balance < 0.05 g for whisper‑quiet blades
• 2‑year limited warranty plus local spares warehoused on three continents
• Certified test reports showing specification airflow at 1 m and 5 m radii

Key Points to Remember

• Ventilateurs de sol excel at spot‑cooling, quick moves, and low CAPEX.
• Ventilateurs de plafond conquer stratification, cut HVAC bills, and free floor space.
• Correspondance CFM to square footage—use our calculator for optimal sizing.
• Follow OSHA guard and motor rules to stay safe in hazardous or dusty shops.
• Combine fans with sensors for smarter, energy‑efficient circulation d'air.

Ready to upgrade? Our team tailors solutions to your besoins spécifiques—reach out today for a no‑cost airflow audit and watch productivity soar.
