Big buildings trap heat and stale air. People slow down. Costs go up. A better fan mixes the air at low speed, so rooms feel cool and balanced without wasting energy.

A pmsm hvls fan is a hvls ceiling fan that uses a permanent magnet synchronous motor to move a large volume of air gently across wide areas. It improves ventilation and cooling, cuts temperature swings, and lowers energy use compared with traditional motors in large industrial spaces.

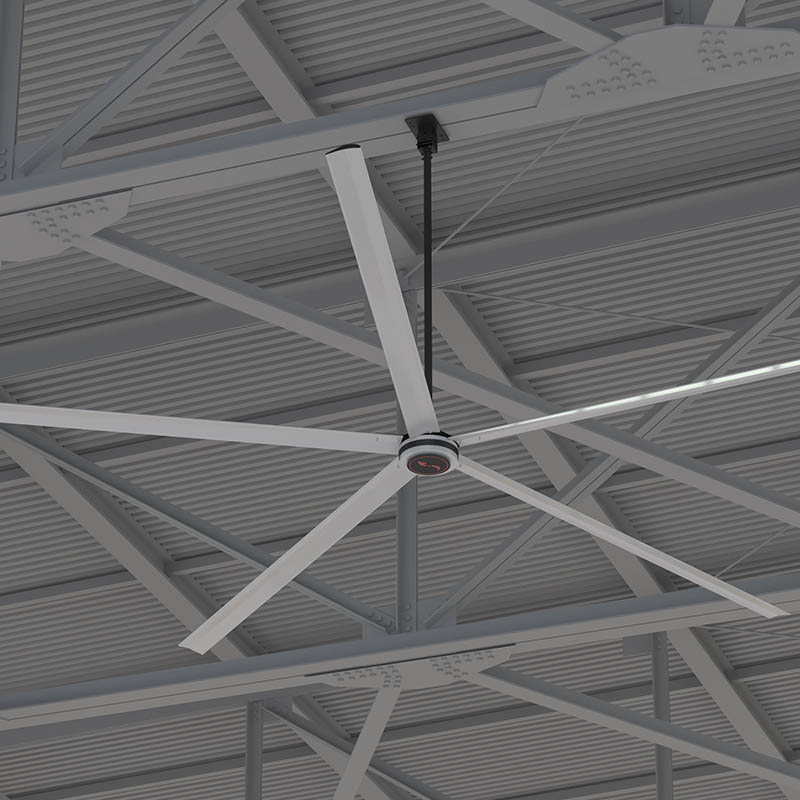

pmsm hvls fan for manufacturing gyms warehouses

What is a PMSM HVLS fan and how does it work?

A hvls fan is a big, slow-moving ceiling fan designed for tall rooms. “PMSM” means the drive is a permanent magnet synchronous motor. Inside, the stator creates a turning field, and the rotor follows it in lock-step. That tight link gives smooth torque and very good motor efficiency.

The result is simple: the fan makes a soft breeze that spreads out far. Instead of a small, fast unit making a draft, this wide disc moves air gently for even air circulation. People feel cool at the same thermostat setting because skin heat evaporates faster.

Why choose HVLS ceiling fans with a PMSM motor?

In one word: efficiency. A PMSM uses permanent magnet rotors, so there’s no “slip” loss like many older drives. That gives higher efficiency at slow RPM. Because it is often direct drive, there’s no gearbox to wear, which means fewer parts and lighter maintenance.

You also get low noise and fine speed regulation. Workers can talk. Coaches can call plays. On top of that, better mixing can reduce HVAC runtime, lowering operating costs while keeping a comfortable working environment. For wide spans, look at the M750 series best hvls fans to cover large floors with fewer units.

Where do HVLS systems fit best in practice?

These systems shine in factories, warehouses, sports halls, and school gyms—anywhere with tall roofs and people moving. In assembly lines, the steady air movement helps staff feel cool without blasting cold air. In storage areas, mixing reduces hot spots and protects goods.

If you run production, check the layout of people and machines. Mark where heat rises and where staff stand still. Then drop in units to wash those zones with gentle flow. For line layouts and planning help, see industrial ceiling fans for manufacturing (layout tips, line comfort ideas).

How big should the diameter be and what about the blade profile?

Pick diameter based on height and open area. Bigger discs cover more ground at the same fan speed. A refined blade profile throws air farther with less power. Many models use strong, light aluminum foils to stay stiff and safe overhead.

Think about zones. Open floors like gyms can use fewer large units; busy aisles may choose smaller units over several bays. The goal is an optimal mix of reach and control.

How big should the diameter be and what about the blade profile?

What are the main parts and controls involved?

Know the main parts: hub, pmsm motor, blade set, down-tube, mount, and controller. The electrical section protects and feeds power. In the drive, permanent magnet rotors lock to the field for steady torque at slow RPMs.

Controls matter. You can use wall dials or integrate with BMS. Modes include forward, reverse, and preset speeds for seasons or shifts. Smart controls help each space feel even without babysitting.

What does PMSM stand for, and why is it efficient?

PMSM stands for permanent magnet. The full term—permanent magnet synchronous machine—means magnets are embedded in the rotor, which follows the field precisely. This makes pmsm technology good at part-load, with strong starts and tight control.

Because the design is often pmsm gearless and direct drive, there are fewer moving parts. That improves reliability, reduces friction, and supports long life. Good design choices lead to steady comfort with fewer headaches.

Installation, safety, and maintenance: what should you plan for?

Good installation starts with beams and brackets sized for the unit. Add safety wires and confirm clearances. After the lift, check balance, tighten to spec, and record setpoints. Then do a slow run test to validate patterns and noise.

Routine maintenance is light: quick wipe of leading edges, a hardware check, and a fast controller review. Track humidity and corrosion risks in wet zones. That’s it—simple habits, steady results. For bay planning and typical installs, review WAREHOUSE HVLS FANS (coverage in tall aisles).

Installation & Maintenance Guide

How does this approach help with ventilation and cooling?

Big rooms stratify. Warm air stacks near the roof. A hvls ceiling solution blends layers, improving ventilation and cooling and reducing temperature swings. People feel cool at slightly higher setpoints, which can save energy.

In summer, run forward for comfort. In winter, run reverse to destratify. Either way, you support air quality and staff focus. For arenas and practice courts, see commercial ceiling fans for sports-centers (quiet comfort where sweat and heat spike).

Simple comparison: PMSM direct drive vs induction vs geared

Below is a quick side-by-side for buyers who want the core differences at a glance.

“In big halls, one well-placed fan can replace many small units. Teams report fewer hot spots and steadier comfort.”

Practical numbers you can use (rule-of-thumb)

Energy and comfort: Mixed air lets you lift the cooling setpoint slightly, or pull excess heat down in winter.

These figures come from field projects and public guidance (see ASHRAE comfort basics and DOE fan tips). Real results vary with height, layout, and control strategy.

Case notes from floors and courts

On a production floor, workers stand near hot tools and machinery. A hvls pmsm layout blends layers, trims peak complaints, and protects equipment by reducing heat build-up. Supervisors say crews feel a gentle wash of air, not a draft.

In a multi-court gym, heat stacks near the roof. One wide unit spreads a soft breeze across the court. Coaches like the quiet. Players say it feels cool even on practice days. If you manage mixed-use halls, these gentle moves can improve air quality and keep people engaged.

A buyer’s checklist (keep it simple)

• Height, span, and obstacles (racks, scoreboards, cranes).
• Diameter choice vs coverage goal.
• Controls: wall dials, sensors, or BMS ties.
• Build: aluminum foils, solid hubs, tested mounts.
• Service plan: simple tasks you can do in minutes each month.
• Partner: a reliable team that supports design and training.

For a clean overview of series and venues, browse commercial building applications and manufacturing solutions for layout sketches and sizing ideas.

FAQs

What does PMSM mean?
PMSM stands for permanent magnet. In full, it’s a permanent magnet synchronous machine. The magnets in the rotor couple strongly to the drive, which boosts part-load performance.

Is a PMSM HVLS good for tall rooms?
Yes. A wide disc at low speed moves a high volume gently. That soft flow helps people feel cool without drafts.

Will it replace AC?
No. The unit mixes layers and supports ventilation. It doesn’t chill air by itself. But it can help save energy by letting HVAC work less.

How often do I service it?
Very little. Wipe edges, check hardware, and review logs. That’s light maintenance most teams can handle quickly.

Can it help with comfort in winter?
Yes. Reverse flow blends warm roof air down to the floor, reducing temperature layers and hot-cold pockets.

Final takeaways

• A pmsm drive uses permanent magnet rotors for tight control and great part-load behavior.
• A wide fan at low speed spreads comfort quietly and evenly.
• Good layout plus simple installation and care gives long life.
• Mixed air raises comfort and can cut HVAC peaks, saving energy.
• If you need planning help, application pages for hvls ceiling fans show examples by building type.

As a manufacturer in china, we build systems for factories, gyms, schools, and more. If you’d like sizing help or a quick layout sketch, reach out—our team is ready to help.

Notes on deeper tech (for the curious)

• PMSM rotors use strong magnet arrays to follow the field tightly.
• Permanent magnet motors keep losses low, which means steadier comfort at slow RPMs and energy-saving potential.
• Some teams prefer “motor fans” with compact rotors in tight bays; others choose wider spans for fewer units.
• For buyers who want clear options, fans utilize strong starts and steady control, and fans deliver coverage without harsh drafts.
• When you compare options, look for cost-effective packages that fit your building’s needs today and tomorrow.

Bullet-summary: what to remember

• A hvls pmsm layout blends layers for even comfort in tall rooms.
• The pmsm motor gives strong starts, precise control, and reliable output.
• Smart sizing (diameter, zones, clear throw paths) matters more than raw power.
• Expect quieter rooms, better mixing, and potential energy saving on HVAC.
• Use the application pages above for quick planning and model matching.
