Stale air and uneven temperatures frustrate workers and managers in large buildings. These conditions become worse when a ceiling is too low or a ceiling fan is improperly installed. If you’re tired of stuffy, unproductive spaces, the HVLS fan is a powerful solution to deliver comfort and efficiency.
The minimum height requirement for an HVLS fan depends on allowing safe fan clearance between the fan blades and the occupants below. Typically, you need at least 7 feet above the floor for the ceiling fan—and in most industrial facilities, a ceiling of 9 feet or higher is recommended. This clearance ensures ideal airflow and safe operation, preventing any contact with equipment or people.
HVLS Fan Clearance Diagram
A ceiling fan is a staple in many homes, offices, and commercial buildings. It hangs from the ceiling to promote air circulation and control temperature more cost-effectively than an air conditioner. But a typical residential ceiling fan differs vastly from an HVLS fan—which stands for High-Volume, Low-Speed fan—especially in fan design and performance.
An HVLS fan is a specialized industrial fan used primarily in factories, warehouses, sports arenas, or agricultural facilities. These fans are designed to operate at a low speed, yet move large volumes of warm air or cool air around a vast area. Unlike a small ceiling fan, the diameter of the fan can span 6 feet, 12 feet, or even 24 feet. This larger fan size pushes a great deal of air downward, achieving robust airflow.
Industry Note: At our hvls fans manufacturing plants, we design and produce advanced HVLS industrial units that accommodate both low speed operation and maximum airflow for large-scale applications.

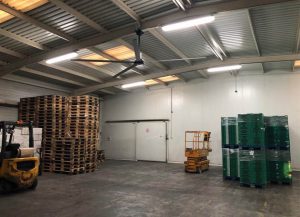

HVLS Fan
When installing a fan, it’s important to think about more than just aesthetics. Fan clearance is a major concern because it keeps the fan blade away from personnel, equipment, and overhead obstructions. A high ceiling typically allows for comfortable movement beneath the fan without reducing the open workspace.
Additionally, the minimum height requirement for an HVLS unit ensures the fan is safe and secure. If fan blades and the ceiling are too close, the airflow becomes restricted, leading to reduced cooling or heating efficiency. Likewise, if the fan blade is mounted too low, it can pose a hazard for workers, shelving, or forklift operations.
Case Study: A busy distribution center installed multiple fans with each fan diameter measuring around 12 feet. By adhering to recommended clearance guidelines, they successfully maintained the needed air circulation at floor level while avoiding contact with tall equipment or stacked pallets.
Ceiling height is one of the biggest factors in choosing the right fan for your space. If the ceiling is too low—say, under 9 feet—you may struggle to find the distance between fans and the people walking around beneath the blades. Ideally, you want at least 7 feet above the floor for safety, but more space translates to better airflow and coverage.
In contrast, a higher ceiling can hold more warm air from the ceiling, which your HVLS ceiling fan can gently push down, stabilizing the temperature. This function is especially valuable in winter, as the system redistributes warm air trapped near the roof. Consequently, a taller industrial ceiling—like a 16-foot ceiling or more—often reaps greater benefit from these fans in buildings.
| Ceiling Height | Recommended Fan Diameter | Coverage Efficiency |
|---|---|---|
| 9–12 ft | ~6 ft to 8 ft | Moderate (smaller rooms) |
| 12–16 ft | ~8 ft to 12 ft | Strong (ideal for mid-size) |
| 16+ ft | ~12 ft to 24 ft | High (suitable for large spaces) |
Height standards vary depending on local building codes and the guidelines set by fan experts. However, a few rules of thumb remain consistent for a ceiling fan or an HVLS fan.
Following these height standards means the fan will need enough overhead room to spin safely. Similarly, if you have an angled ceiling or other architectural features, you may have to lower the fan with a downrod so it is not too close to the ceiling, ensuring the best air distribution.
Choosing the right HVLS ceiling fan size depends on multiple considerations. First, measure the size of the room or open area, including ceiling length and width. Next, account for how many obstacles—like rafters, lighting, or ducts—might restrict the fan placement. If the ceiling height allows for a larger fan, going up a size typically yields broader airflow.
Pro Tip: For a right hvls fan size, match the blade span with the total area. For instance, a 20-foot blade span is great for a 15- to 20-foot industrial ceiling.
Blade size plays a huge role in delivering stable airflow. A ceiling fan with small blades might need to spin faster to move the same volume of air as a larger fan with longer blades. Conversely, a big fan blade can produce significant air circulation at a low speed, meaning quieter operation and less energy usage.
Fan blade design also affects how well fans can circulate air. Some fans feature contoured or curved edges that minimize drag, while others incorporate winglets that channel airflow more effectively. In an HVLS fan installation, you want to ensure the fan blade is robust enough to handle continuous operation, especially in a busy factory or manufacturing plant.
Fact: Our hvls fans manufacturing line focuses on aerodynamic fan blades that create a consistent column of air stretching from the fan to the ceiling all the way down to the floor.
Many large businesses have semi-open or covered facilities, such as loading docks or open-air pavilions. If you have an outdoor ceiling, installing a big ceiling fan or HVLS fan can be beneficial. Not only do these fans offer temperature moderation by moving cool breezes, but they also help keep insects at bay in certain areas.
When it comes to an outdoor ceiling, verifying the fan design is critical. Some HVLS fans come with weatherproof components—like corrosion-resistant finishes or enclosed motors—that endure humidity or temperature swings. Regardless, confirm the structure can support the weight of your industrial ceiling fans. If it can, you’ll enjoy improved airflow while maintaining a comfortable environment for employees or visitors.
Tip: For a truly best fan approach, check the IP rating or any rust-proof certification. That way, you’ll be sure your fan is safe and secure in outdoor conditions.

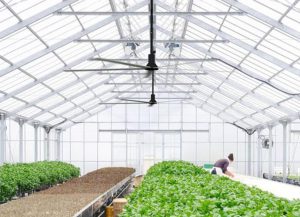

Large Industrial Fan in Greenhouses
Finding the perfect ceiling fan height is essential for achieving optimum performance and safety. A standard recommended practice is ensuring the fan is 6 feet away from any obstacles like beams or shelving. Additionally, you want at least 7 feet above the floor from the fan’s lowest point. For an HVLS fan, you might need more clearance—especially if the fan diameter is quite large.
Data Point: The fan clearance needed in a 30,000 sq. ft. warehouse is more stringent than in a small shop. Overlooking fan height can compromise the entire fan system performance.
In this section, we’ll tackle some frequently asked questions about ceiling fan installation in large commercial or industrial venues.
How can I find the distance between fans in a big space?
The general rule: leave a space equal to **at least one fan diameter between two HVLS units. This approach eliminates overlapping airstreams and ensures smooth air circulation.
Is it possible to install the fan without shutting down operations?
Yes, but you should schedule the fan installation during a quiet shift if possible. You want minimal foot traffic beneath the fan to keep everyone safe. It’s also wise to rope off the area where a person might walk directly below.
What if I have a lower ceiling height?
A lower ceiling height doesn’t necessarily exclude HVLS usage. However, you might opt for smaller fans or different fans that meet building codes. Always maintain at least 7 feet above the floor—and if local regulations differ, follow those.
How do HVLS fans help with winter heating?
HVLS fans help redistribute warm air trapped at the top. Rather than letting that heat linger near the roof, the gently circulating fan moves it down, creating a more uniform temperature.
Bonus Tip: Many building owners reference the official fans website of reputable manufacturers or consult fan experts for product specs and installation clarifications.
Let’s wrap up with a step-by-step guide for hvls fan installation. This approach ensures you install the fan effectively for maximum safety, compliance, and performance.
Installation Guide: By sticking to these steps, you’ll avoid safety pitfalls and enjoy the full benefits of an HVLS ceiling fan—namely stable air temperature, improved productivity, and energy savings.
Does a fan need to be 9 feet from the wall to work properly?
In fan applications, ensuring the fan is 6 feet or more from walls or columns often suffices to reduce turbulence. For bigger spaces or a larger diameter fans arrangement, 9 feet from the wall can optimize air circulation.
Can HVLS fans operate in smaller rooms?
Yes, as long as the ceiling height and clearance allow safe operation. Smaller fan models exist for mid-sized rooms. However, always confirm a minimum height requirement so the fan would not risk collisions or injure anyone beneath it.
Is an HVLS fan suitable if I have a lower ceiling height?
You can still use HVLS technology in some cases. But if your ceiling is under 9 feet, your fan installation might violate local codes. Always check local regulations or consult fan experts.
Should I find the distance between the ceiling fan blade and overhead beams?
Absolutely. Distance between the ceiling structure and the ceiling fan blade is essential. Keeping a proper gap ensures unimpeded airflow and reduces noise.
Where can I learn more about installing your HVLS?
You can visit our main HVLS Fans Website for additional step-by-step guidance and to connect with a fan experts team.
By following these tips and guidelines, you’ll be on track to selecting the best fan for your facility while respecting the minimum height requirement. If you have any questions, reach out to our hvls fans manufacturing specialists so we can help you finalize fan installation details. We’d be thrilled to assist you in choosing the right HVLS fan for maximum comfort and performance!
Hi, I’m Michael Danielsson, CEO of Vindus Fans, with over 15 years of experience in the engineering and design industry. I’m here to share what I’ve learned. If you have any questions, feel free to contact me at any time. Let’s grow together!
