Struggling with hot, stuffy air in a tall building? The wrong ceiling height or fan size can waste energy and still leave people uncomfortable. By matching HVLS fan size to your ceiling height, you can fix airflow, boost comfort, and cut energy bills.
In most commercial and industrial spaces, HVLS ceiling fans should be mounted so the blades are at least 10 feet (3 m) above the floor, with a total ceiling height of around 13 feet or more. Larger industrial HVLS fans in warehouses and factories work best with ceiling heights of 20–40 feet, where they can move high volumes of air safely and efficiently.
A High Volume Low Speed (HVLS) fan is a very large industrial ceiling fan, usually 8–24 feet in diameter. Unlike a small ceiling fan you might see at home, an HVLS fan turns slowly at low speed but moves massive amounts of air over a big area. One 24-foot HVLS fan can move up to 375,000 cubic feet of air per minute.
A normal ceiling fan is designed mainly for small rooms and low ceilings. It has short blades, higher speed, and covers a limited room size. In large industrial spaces, you would need many small ceiling fans to get the same coverage that a single industrial HVLS fan can handle.
As an HVLS fans manufacturing plant, we design commercial and industrial HVLS fans specifically for:
These industrial fans are designed to be installed high on the industrial ceiling, where they can move massive amounts of air at low speed to improve comfort and reduce energy use.

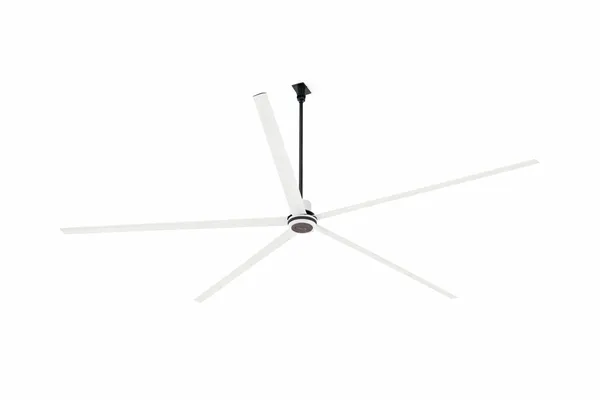

What is a HVLS fan
For safety and performance, there are two key height ideas to remember:
Industry guidelines and building codes often require that the ceiling fan must keep fan blades at least 10 ft (3 m) above the finished floor in industrial or commercial spaces.
Many HVLS manufacturers recommend:
In simple terms:
Rule of thumb: An HVLS fan is often not installed below 15 ft total height in serious industrial or commercial applications.
When we do HVLS fan sizing, we always look at three basic facts:
The larger the fan, the more air it can move at low speed. High volume low speed fans push air down in a big column, then out across the floor, where the air spreads and rises again. This loop lets fans move massive amounts of air gently, not like a noisy high-speed blower.
If the ceiling height is too low for the fan diameter, then:
If the ceiling is very high but the fan size is small, the fan can cover only a limited circle. Warm air from the ceiling stays trapped, and the fans work harder without really fixing the hot and cold spots. That’s why fan size is critical in any fan size selection discussion.
Here is a simple HVLS ceiling fan size guide based on ceiling height and typical size of the space. This comes from common practices used by major manufacturers and application guides.
| Ceiling height (ft) | Typical mounting height (blade to floor) | Suggested fan diameter | Approx. coverage per fan* |
| 13–16 ft | 10–12 ft | 12–14 ft | 6,000–8,000 sq ft |
| 16–20 ft | 12–14 ft | 14–18 ft | 8,000–12,000 sq ft |
| 20–30 ft | 15–20 ft | 18–22 ft | 12,000–18,000 sq ft |
| 30–40 ft | 20–30 ft | 22–24 ft | 18,000–22,000+ sq ft |
*Actual coverage depends on layout, industrial ceiling obstructions, and room size.
Some warehouse experts recommend 14–24 ft fans for typical warehouses with 20–30 ft ceilings, with 18–20 ft as a very common ideal fan size.
As a supplier of HVLS fans, we always check:
From this data, we help determine the size and get the right fan or right size HVLS fan for your project.
Ceiling height is not the only number that matters. Mounting height and safety rules set a minimum height requirement for every industrial ceiling fan or HVLS fan.
In buildings with fire sprinklers, NFPA 13 requires:
Other common clearance rules from manufacturer guides include:
Even for standard ceiling fans, many codes say blades must be at least 7 ft above the floor in homes and 10 ft in industrial spaces. That means the ceiling fan is crucial to plan early in design—ceiling fan size chart and clearance rules should be part of your project layout.
Here’s a simple step-by-step process we use when selecting the right HVLS fan or selecting the right HVLS ceiling solution for a customer.
This helps us help determine the size of fan and the number of fans required.
In many projects:
Remember, fans are designed so the larger the fan, the more volume of air at low speed it can move. But the fan size is critical—too large can clash with obstructions; too small wastes your ceiling height.
Here is a simplified HVLS ceiling fan size chart that we often use as a starting point in design talks:
| Ceiling height | Typical HVLS fan size | Notes |
| 13–16 ft | 12–14 ft HVLS fan | Light industrial or commercial, low racks |
| 16–20 ft | 14–18 ft HVLS fan | Standard industrial or commercial space |
| 20–30 ft | 18–22 ft HVLS fan | Large industrial or commercial spaces |
| 30–40 ft | 22–24 ft HVLS fan | Very large industrial buildings, arenas |
In many commercial and industrial HVLS fans projects, the fan hangs about 25% of its diameter below the ceiling, and blades are still at least 10 ft above the floor.
This is not a rigid rule, but a hvls ceiling fan size guide to help you select the best fan and correct fan size for your site.
After deciding the right hvls ceiling fan size, we look at:
Common design rules:
For example, if the fan is 6 feet in diameter:
Larger fans can cover more area, so you often need fewer units. But sometimes multiple mid-size fans are the best fan for your space if the building shape is complex.
How many fans do you need
Choosing the right size matters. If fan size is critical and you get it wrong, you will feel it every day.
A smaller fan installed high in a warehouse may:
In this case, the ceiling fan for your space is simply not strong enough. Even if HVLS fans help some areas, the size for your facility is still wrong overall.
A larger fan in a low building can:
Sometimes, people think “bigger is always better.” But when fans move massive amounts of air at the wrong height, they can cause drafts, discomfort, or safety issues. That’s why selecting the right size and selecting the right HVLS model should always be done with proper design.
Many studies and manufacturers report that HVLS fans work with HVAC systems to cut energy use by 20–30% or more, thanks to destratification and higher thermostat set points.
Key benefits for industrial or commercial users:
For example, one warehouse that installed large HVLS ceiling fans reduced HVAC use by about 40% and saved around $18,000 per year, with payback in less than two years.
As an HVLS fan manufacturer, we design our large industrial fans so they:
When you choose the right industrial HVLS ceiling fan size, you are not just buying airflow. You are buying comfort, safety, and long-term savings.
Let’s walk through a simple example the way we would with a real client.
Project:
With a 12 m ceiling, we aim for a blade mounting height of about 8–9 m, leaving 3–4 m down to the floor. This matches common guidance that optimal blade height is 6–8 m above the floor, and not more than about 14 m.
Using the hvls ceiling fan size guide, we see:
One 24 ft HVLS fan can cover up to about 22,000 sq ft in a clean, open layout.
Because the size of the room is close to the max area one HVLS fan can handle, we can:
We then calculate distance between fans (≈ 2.5–3 × diameter) and distance to walls (≈ 1.5 × diameter) to set exact coordinates.
This simple process shows how ceiling height, fan diameter, and size of the space all guide us in choosing the right HVLS fan.
Selecting the right size HVLS fan for a warehouse
What is the minimum ceiling height for an HVLS fan in an industrial building?
Most manufacturers recommend installing an HVLS fan so the blades are at least 10–13 ft above the floor. This usually means a ceiling height of about 13 ft or more, and in many cases 20 ft or higher for full-size fans. Always check local codes and the specific product manual.
Can I use HVLS ceiling fans in a building with a low ceiling?
If your ceiling is below about 13 ft, a large HVLS ceiling fan may not be safe. Instead of one big size HVLS fan, you may need smaller fans or high-performance industrial air circulators. Our engineering team can review your site and suggest the right fan for your space.
How does ceiling height affect the right hvls fan size?
Higher ceilings trap more hot air near the roof. In these cases, a larger fan with bigger ceiling fan blade size can push air down further and mix temperatures better. For low ceilings, we choose a smaller fan size to meet the minimum height requirement while still moving enough air.
How many HVLS industrial ceiling fans do I need?
It depends on size of the space, fan diameter, and layout. We often start with coverage per fan, then adjust using rules like 2.5–3 × diameter between fans and 1.5 × diameter from walls. This method helps us find the distance between fans and selecting the right HVLS fan count.
Do high volume low speed fans work with HVAC systems?
Yes. High volume low speed fans are designed to work with your heating and cooling, not replace it. Many users report 20–30% energy savings when combining HVAC with HVLS fans, because they can raise or lower thermostat set points while keeping people comfortable.
How long is the typical lifespan of the fan?
A quality HVLS fan built for commercial and industrial use can last many years, often over a decade, with basic maintenance. Because these fans are specially designed to run at low speed and low stress, the lifespan of the fan is usually much longer than many small high-speed fans.
As a dedicated HVLS fans manufacturing plant, we do more than just sell a ceiling fan. We help you design the right size HVLS fan solution for your factory, warehouse, gym, school, or commercial building:
If you’re planning a new project, or tired of hot, uneven air in an existing building, we can help you select the best fan and ceiling fan size so your workers, students, or customers feel better—and your energy bills go down.
Hi, I’m Michael Danielsson, CEO of Vindus Fans, with over 15 years of experience in the engineering and design industry. I’m here to share what I’ve learned. If you have any questions, feel free to contact me at any time. Let’s grow together!
